Dual-wall rods · cyclone sampling · 500 m

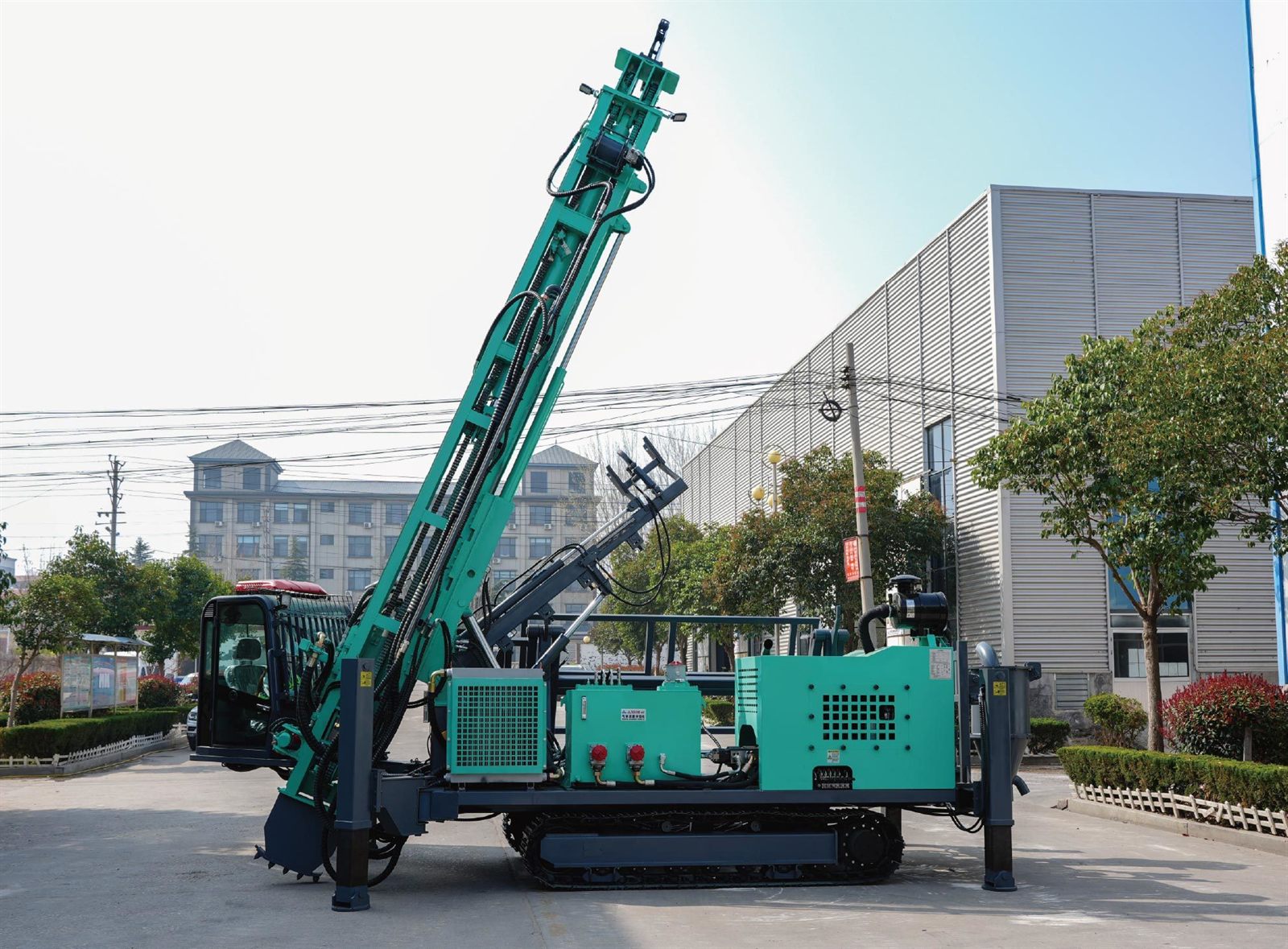

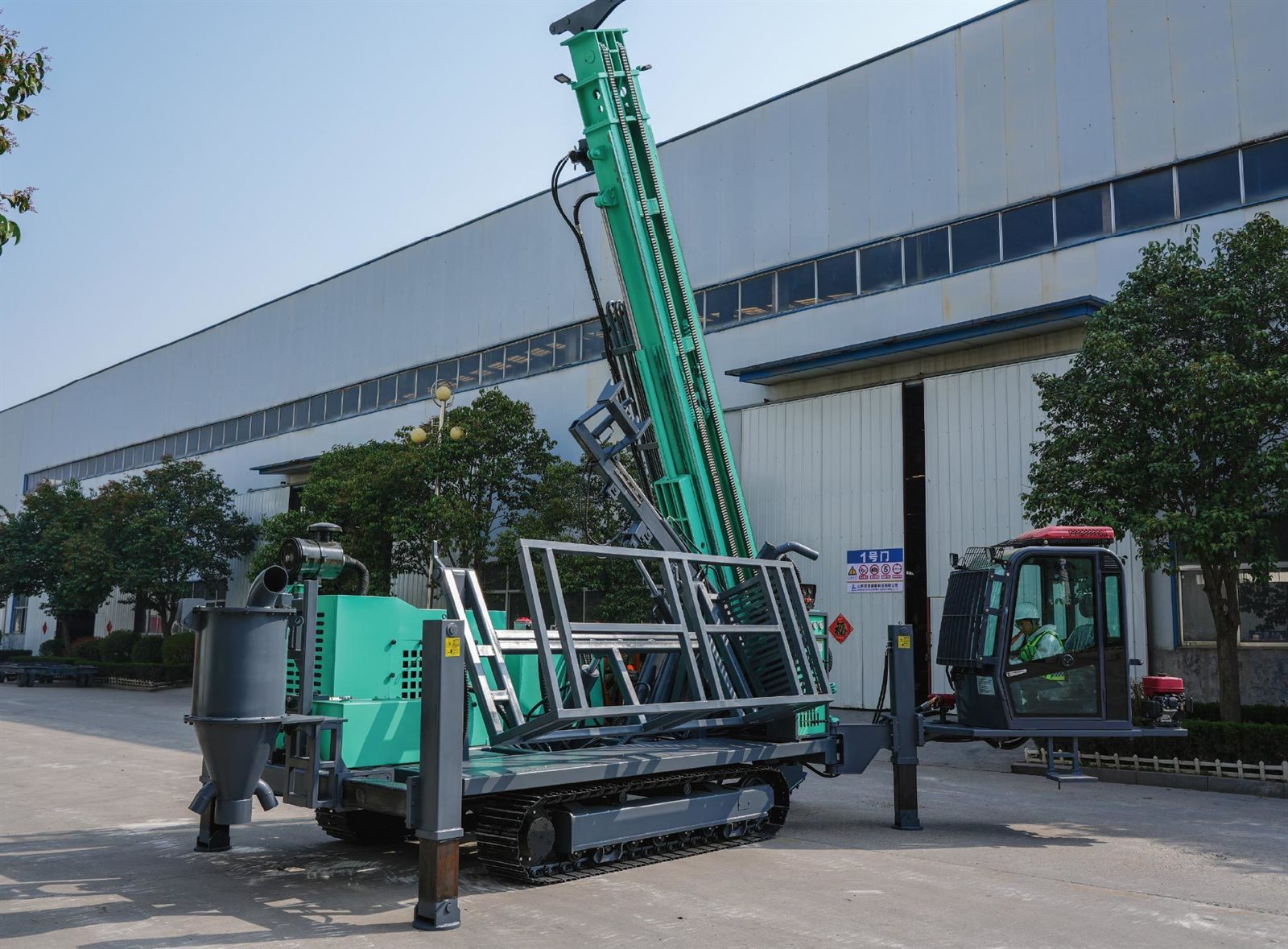

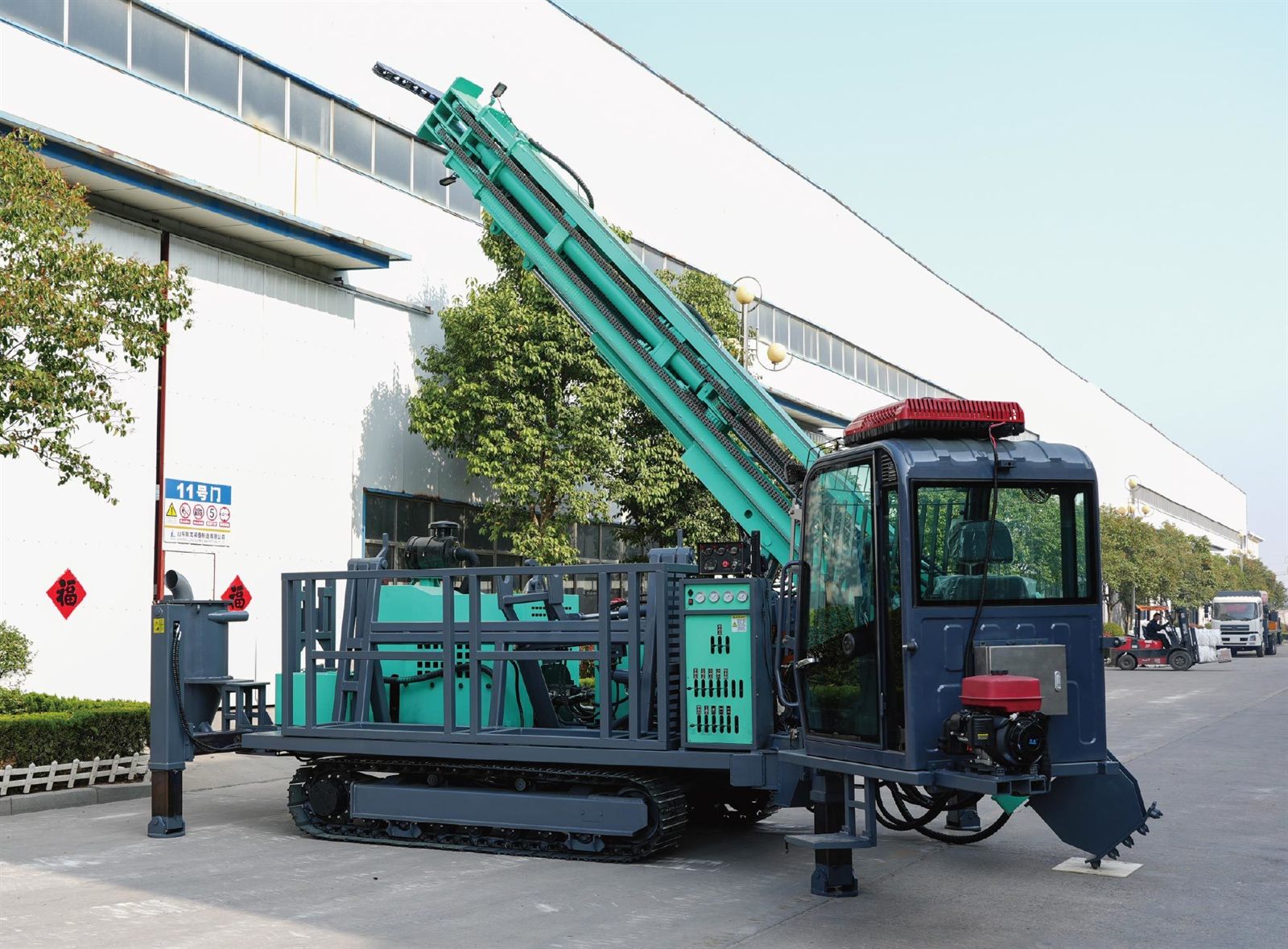

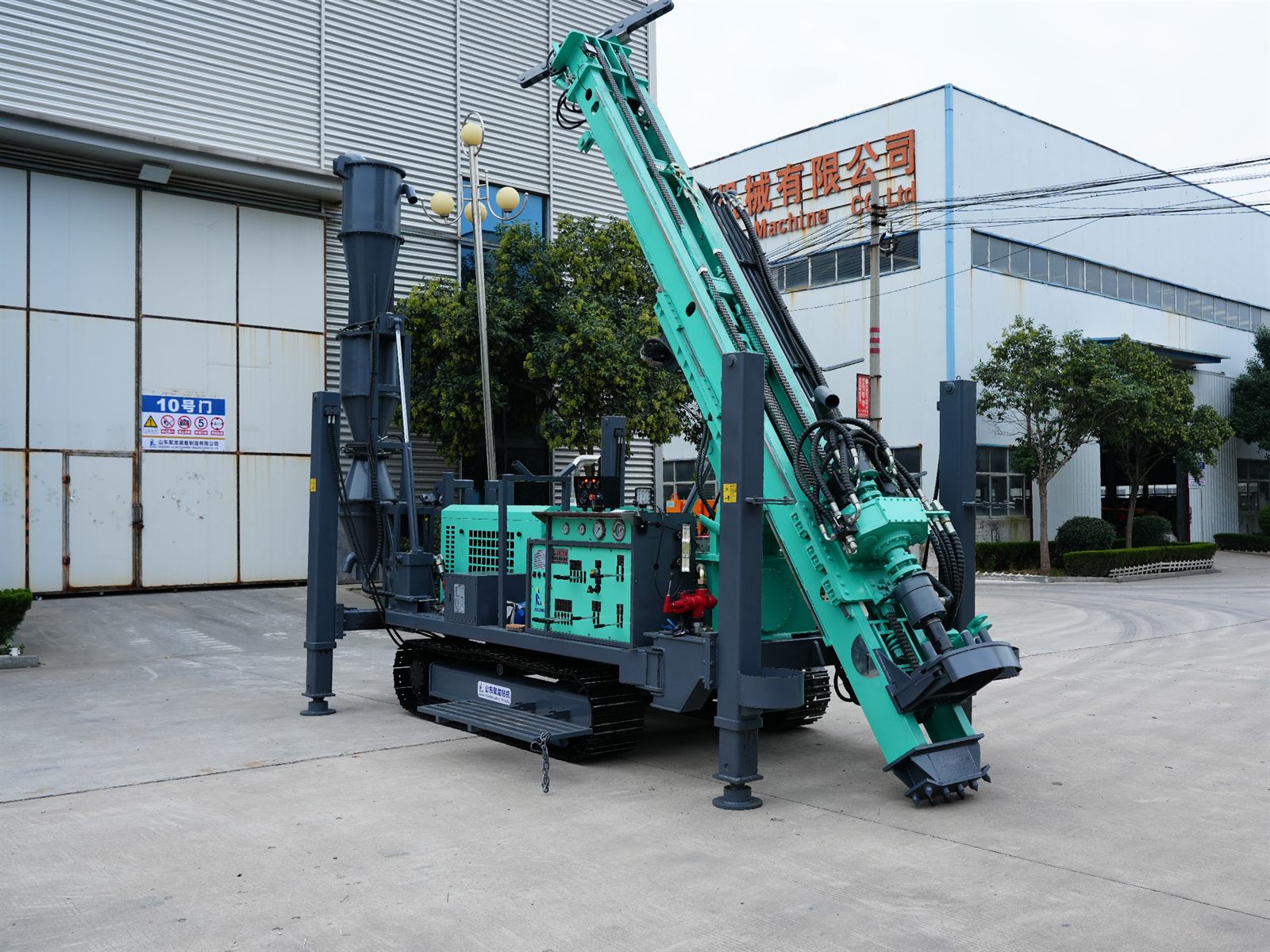

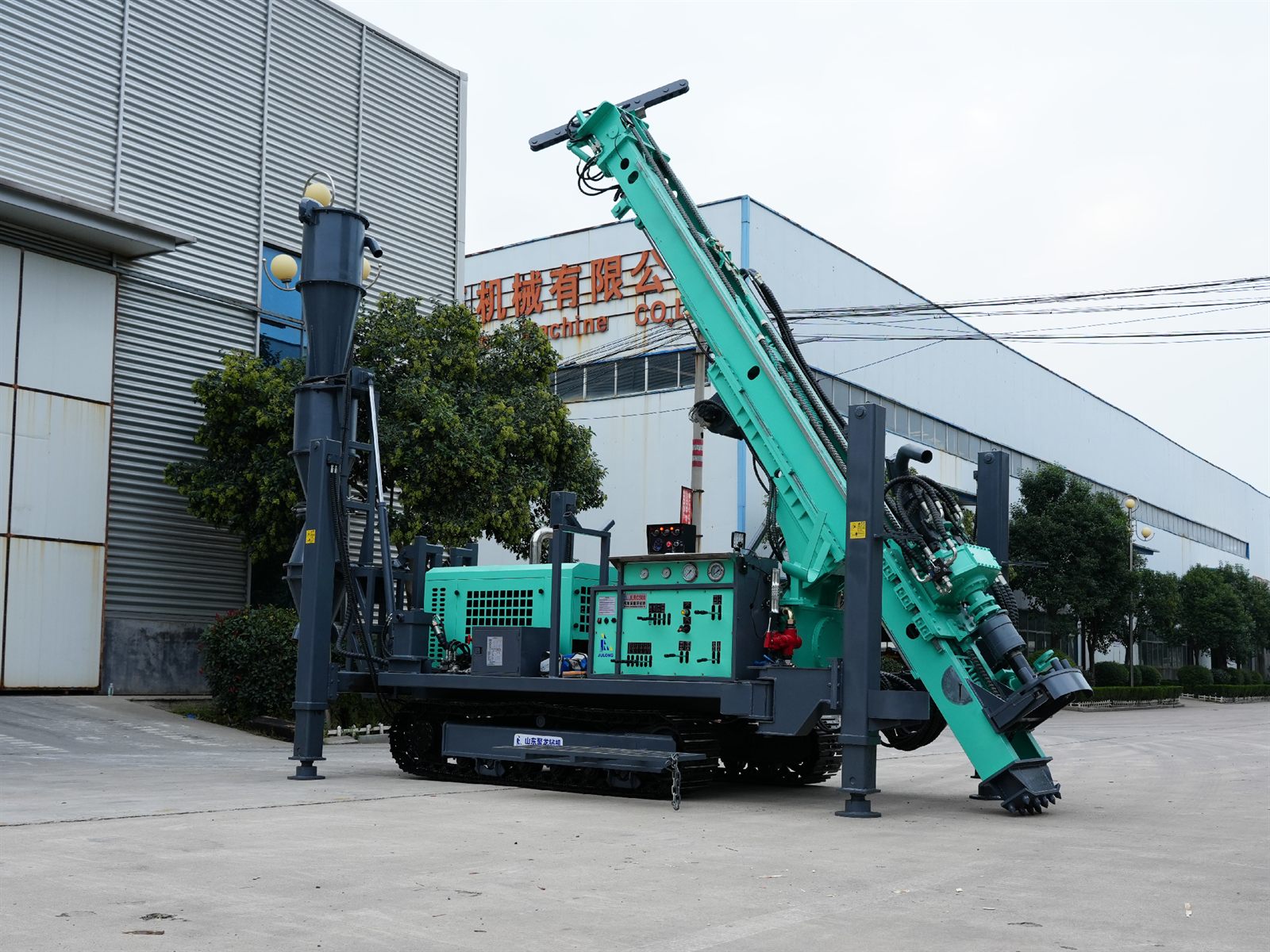

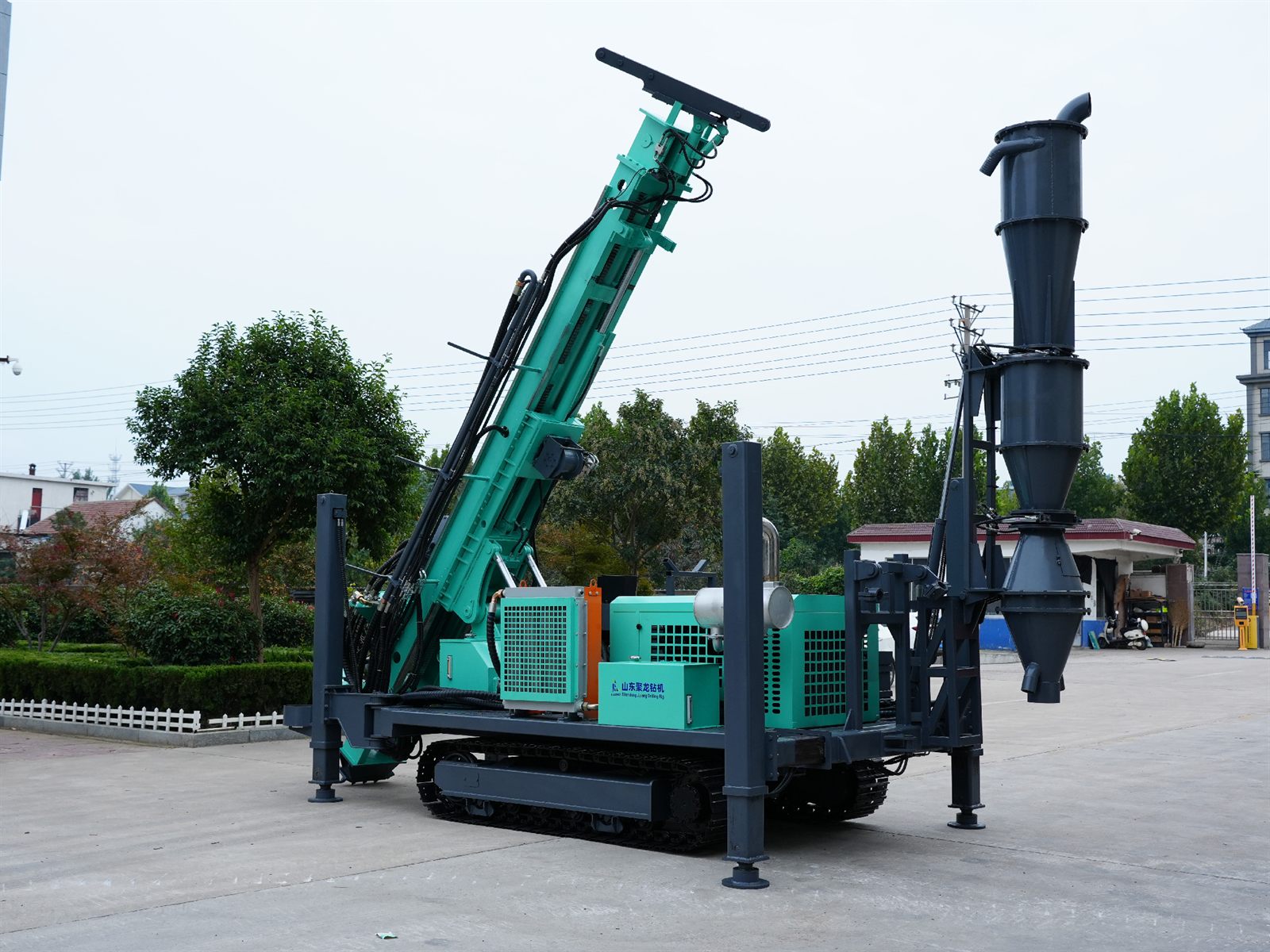

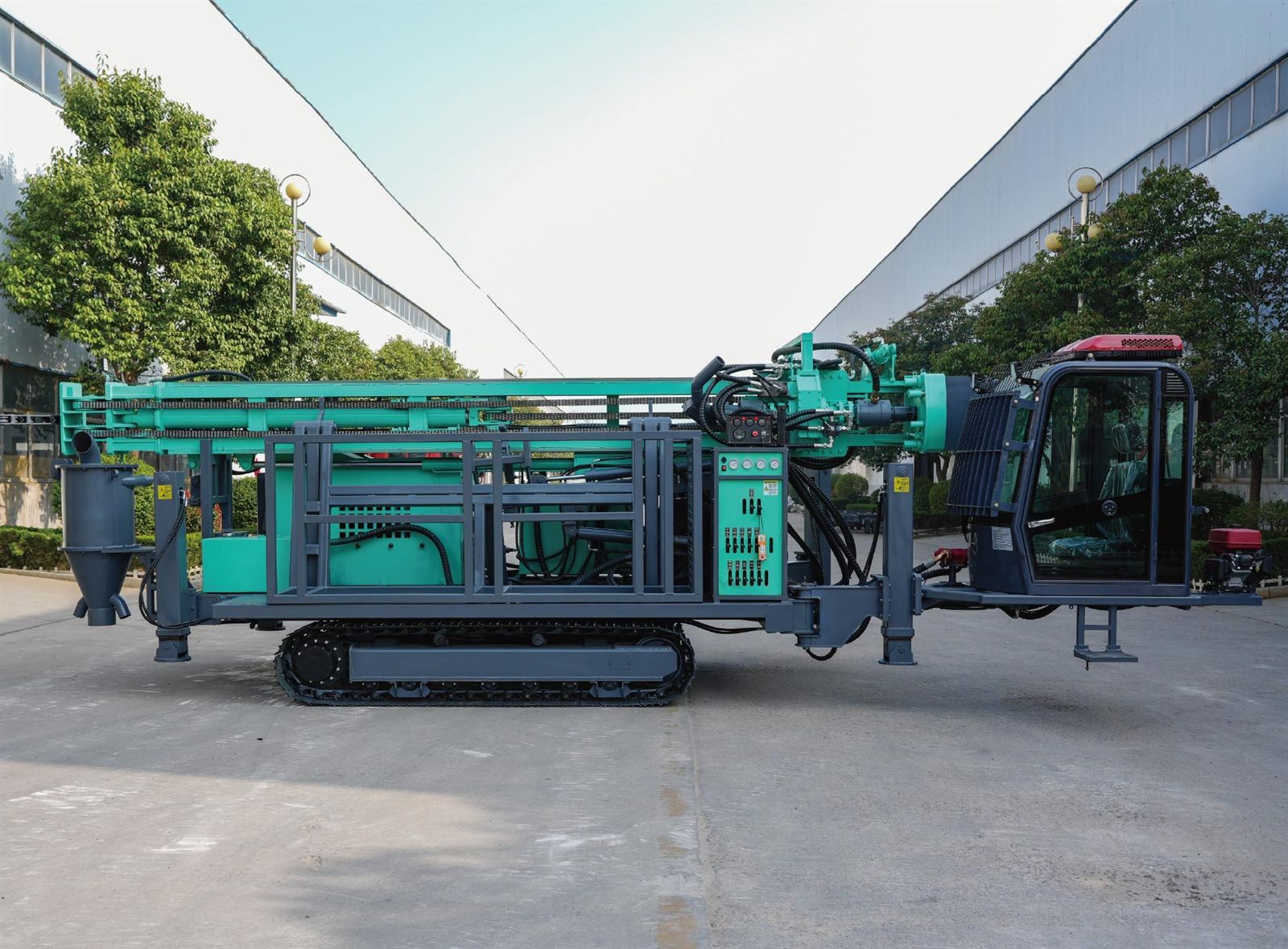

A new-generation, efficient, environmentally friendly multi-purpose crawler rig. Dual-wall drill rods return cuttings through the inner tube to a cyclone collector for geological sampling and analysis. Air-lift reverse circulation DTH drilling works across many formations. An independent hydraulic oil cooler keeps the rig running in high outdoor temperatures, while the sliding mast with compensation cylinder clamps to the working face for greater rigidity.
| Drilling depth | 500 m |
|---|---|
| Hole diameter | 105–400 mm |
| Rod diameter | 76 / 89 / 102 / 114 mm |
| Rod length | 1.5 / 2 / 3 m |
| Rotation torque | 8,000–12,000 N·m |
| Rotation speed | 40–160 rpm |
| Feed stroke | 3.3 m |
| Pull-up / feed force | 300 kN / 150 kN |
| Fast lift / fast feed | 20 m/min / 40 m/min |
| Engine | 康明斯 |
| Rated power / speed | 132 kW / 2200 rpm |
| Tool winch pull | 20 kN |
| Air pressure | 1.7–3.5 MPa |
| Air consumption | 17–42 m³/min |
| Travel speed / gradeability | 2–3 km/h / 25° |
| Transport dimensions | 6300 × 2100 × 2500 mm |
| Working dimensions | 4500 × 3000 × 6800 mm |
| Operating weight | 12 t |
※ Specifications shown are standard factory configuration and can be tailored to your site conditions. Subject to change without notice; actual product prevails.
Our own production base — assembly, test run and container loading, photographed on site. Bulk orders delivered on schedule, shipped to 80+ countries.
